AC SERVO MOTORS · FP SERIES

Xtrafors Prime.
Zero Cogging.

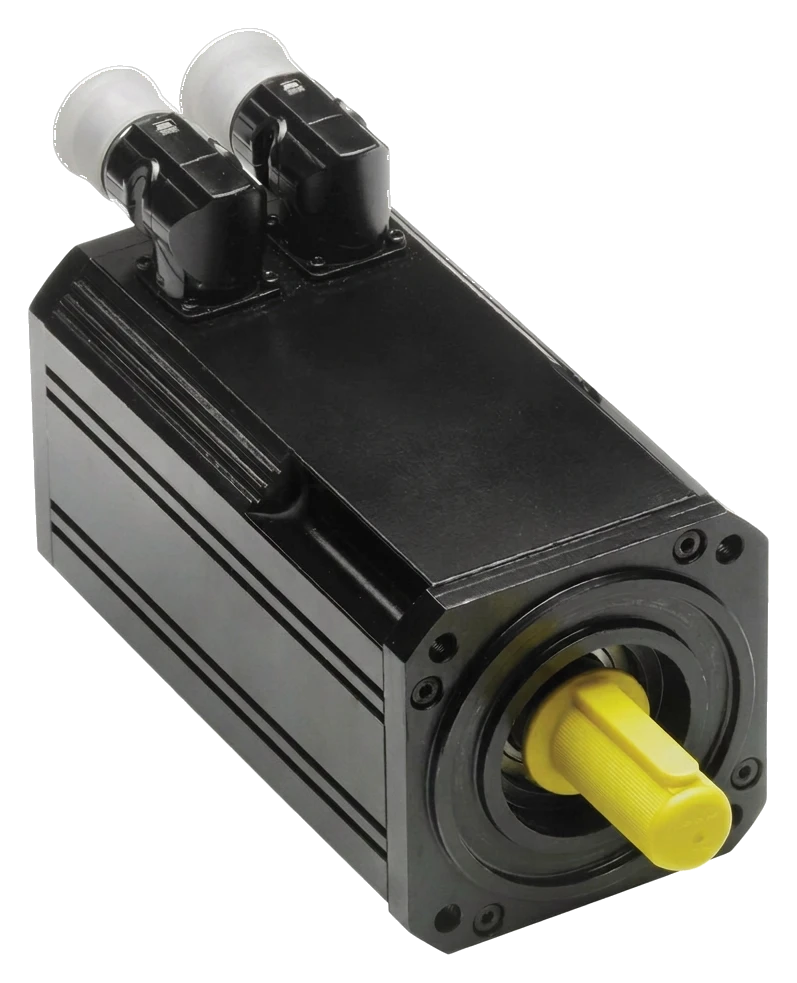

Xtrafors Prime FP series zero-cogging AC servomotor
  • 0.24 – 75 NmStall torque
  • 30 – 190 mmSquare flange
  • 3 000 / 1 500Rated speed, rpm
Download Datasheet
Overview

One Modular Platform.
Sixteen Standard Models.

Sixteen frame and length combinations cover a stall torque range from 0.24 Nm to 75 Nm — and every one of them can be re-specified around your axis: shafts, flanges, housings, windings and connections.

The slotless stator is the defining feature. Without stator slots there is no reluctance variation, so the motor turns without detent steps: zero cogging and minimal torque ripple, with high speed, torque, efficiency and rigidity.

Technical Data

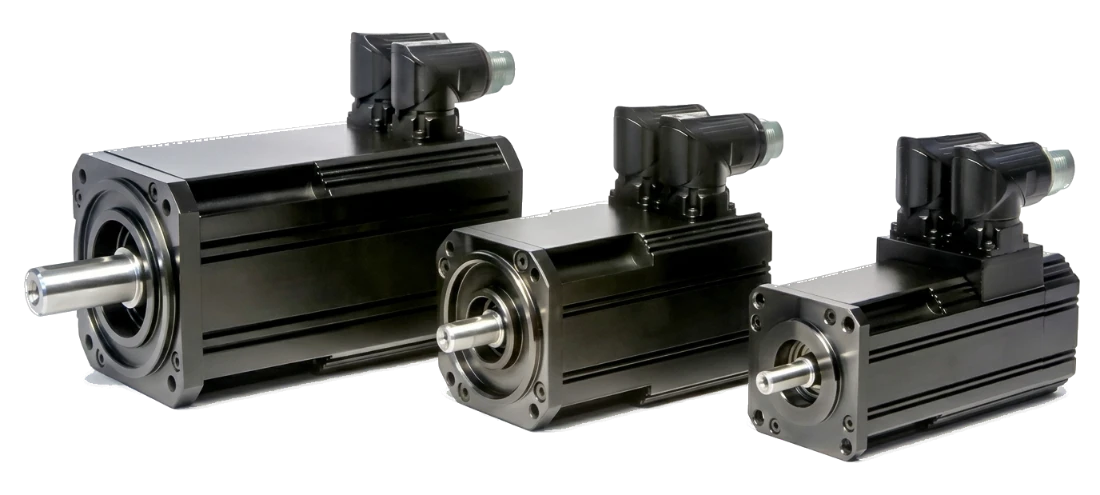

Three sizes of the Xtrafors Prime FP modular platform
16Standard models,
30 to 190 mm flanges
Why This Series

What the Xtrafors Prime
Gives Your Axis

The properties the Xtrafors Prime was designed around — taken from the Mavilor documentation, not from a brochure adjective list.

  • Zero Cogging

    The slotless stator removes the reluctance variation behind cogging torque — no detent steps.

  • Minimal Torque Ripple

    Smooth torque through the whole revolution, for force-loop and low-speed positioning axes.

  • High Speed and High Torque

    0.24 Nm to 75 Nm stall torque — 3 000 rpm rated up to 13.2 Nm, 1 500 rpm above it.

  • High Efficiency

    Less loss in the magnetic circuit, less heat to take out of the machine.

  • High Rigidity

    A stiff mechanical design that holds its position under load.

  • Modular Construction

    One platform, sixteen standard models — shafts, flanges, housings, windings and connections customized on top.

Technical Data

Published Ranges.
Sized With You.

Ranges and construction data of the series. Per-model torque, speed and dimension tables are in the datasheet — and our engineers will size the axis with you.

TypeZero-cogging AC brushless, radial flux, slotless stator
Stall torque0.24 Nm to 75 Nm
Rated speed3 000 rpm up to 13.2 Nm · 1 500 rpm from 18.3 Nm
Flange ØA28 · 32 · 40 · 60 · 80 · 95 · 130 · 180 mm (square flange 30 to 190 mm)
FeedbackResolver (standard) · incremental, SinCos, Hiperface and EnDat encoders (option)
Windings400 VAC, 230 VAC and 48 VDC
ProtectionIP-65 standard · IP-67 and shaft seal optional
BrakeHolding brake available
Thermal sensorPTC standard · NTC optional
ConnectionRotatable angled connectors standard · straight connectors or direct cable output optional
ComplianceRoHS conform · UL conform (UL-listed pending)

Data: Xtrafors FP Prime, AC Servomotors, 2024 — subject to modifications.

Standard models
  • FP-0023
  • FP-0034
  • FP-0055
  • FP-0105
  • FP-0207
  • FP-0307
  • FP-0409
  • FP-0609
  • FP-0711
  • FP-0911
  • FP-1111
  • FP-1311
  • FP-1714
  • FP-3314
  • FP-5019
  • FP-8019

Not Sure Which Size?

Send us the torque, speed, duty cycle and the space you have. We come back with a configuration — standard or adapted.

Configuration

Standard, Optional,
or Built Around Yours

Every Xtrafors Prime leaves Barcelona in one of three states: as the standard version, with catalogue options, or re-engineered around your machine.

  • Standard Version

    • Resolver feedback
    • Shaft with keyway
    • Protection IP-65
    • Rotatable angled connectors
    • PTC thermal sensor
    • RoHS conform
    • UL conform (UL-listed pending)
    • Windings 400 VAC, 230 VAC and 48 VDC

  • Options

    • Incremental encoders of various types
    • SinCos encoders, Hiperface, EnDat
    • Shaft without keyway
    • Protection IP-67
    • Shaft seal
    • Straight connectors
    • Direct cable output
    • NTC thermal sensor
    All options

  • Customized Versions

    • Shafts, including hollow shafts
    • Flanges and housings
    • Windings and connections
    • Executions according to the customer’s specification
    Custom & specialty
